Whole Diameter: 9.5mm ±0.3,
Copper Diameter: 23AWG or 0.5733mm,
Weight: Approx 41Kg of total box,
Frequency and Speed: upto 250MHz and Max. Speed 10Gbps at 55M, Max. Speed 1Gbps at 100M,
Certification: UL, ETL, RoHS, TIA/EIA 568 C.2 Complaint,

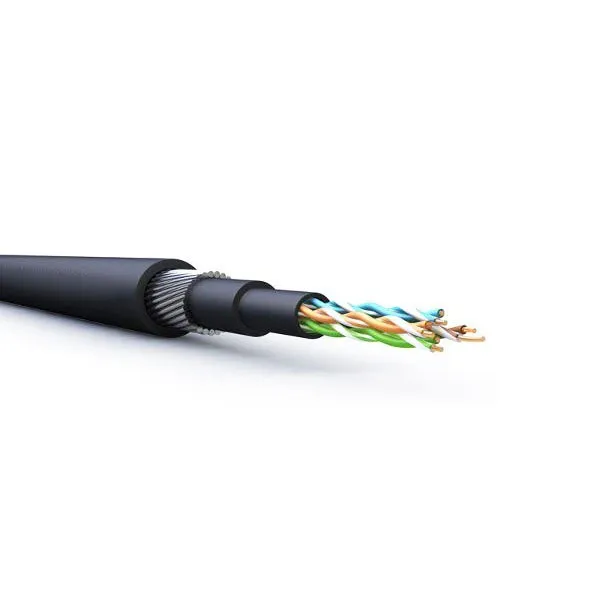

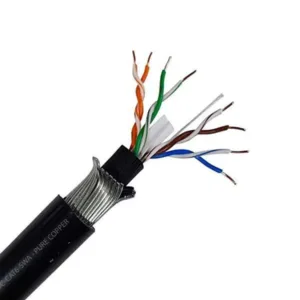

Insulation: HDPE over Copper Wires, Inner Jacket PVC Gray, Armoring and Outer Jacket FR-PVC Black 0.85mm,
Armoring: Aluminium Wire,
Conductor: 4 Pairs of 23 AWG Twisted Solid Copper,
Color: Black,
Transmission protocols supported: 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T,
Separator: PE, (Polyethylene)
Operating Temperature Range: – 20°C to +60°C
Storage Temperature Range: – 20°C to +60°C
Twists per turn >200,
ATT = 35.9 dB/100m, RL = 8 dB, NEXT = 33.1 dB, PSNEXT = 30.2dB, ACRF/ELFEXT: 15.3 dB, PSACRF = 12.3 dB,
PART CODE: NCB-C6UBLKR-305-A,
